Mechanical seal leaks remain the primary cause of unplanned downtime in industrial fluid handling systems. When a seal fails, operations halt immediately. Maintenance teams must scramble to replace components, and the operational impacts multiply quickly. Many facilities struggle with repeated failures because they specify seals without a complete understanding of their fluid's chemical, thermal, and physical profile.
Even the highest-quality wet ends will fail if the mechanical seal materials are mismatched with the specific water quality. Abrasives, pH extremes, dissolved solids, and a lack of lubricity all threaten seal integrity. You cannot rely on standard factory configurations for complex fluid challenges. An industrial stainless steel pump requires precision-matched sealing components to survive harsh conditions.
This guide breaks down how to analyze water quality parameters systematically. We will compare seal face and elastomer materials. You will learn how to configure seals to ensure long-term reliability and minimize lifetime operational expenses.
Water purity dictates lubricity: Ultra-pure (RO/DI) water lacks natural lubricity, requiring specialized hard-face seal combinations (like Silicon Carbide) to prevent dry-running and thermal cracking.
Particulates demand abrasion resistance: High Total Suspended Solids (TSS) will rapidly destroy standard carbon/ceramic faces; abrasive applications require harder materials, cyclone separators, or double-seal configurations.
Dissolved solids require quenching: High TDS (Total Dissolved Solids) can crystallize at the atmospheric side of the seal face, requiring an external flush or quench (API Plan 62) to prevent face scoring.
Temperature and pressure limits dictate elastomers: The choice between EPDM, FKM, and PTFE hinges on the fluid's maximum operating temperature, chemical aggressiveness, and the risk of explosive decompression in high-pressure systems.
Long-term economics favor precision over baseline specs: Upgrading to a cartridge or double mechanical seal increases upfront CAPEX but drastically reduces OPEX in harsh water applications by extending Mean Time Between Failures (MTBF).
A mechanical seal contains several critical components that work together to prevent fluid from escaping the pump casing along the rotating shaft. The stationary face mounts securely to the pump casing or seal gland. The rotating face spins in tandem with the shaft. Secondary sealing elements, typically O-rings or specialized elastomers, prevent leakage along the shaft sleeve and the gland. A spring or bellows mechanism maintains constant, precise pressure between the two highly lapped seal faces. This precise alignment keeps fluid inside the casing while allowing the shaft to rotate freely.

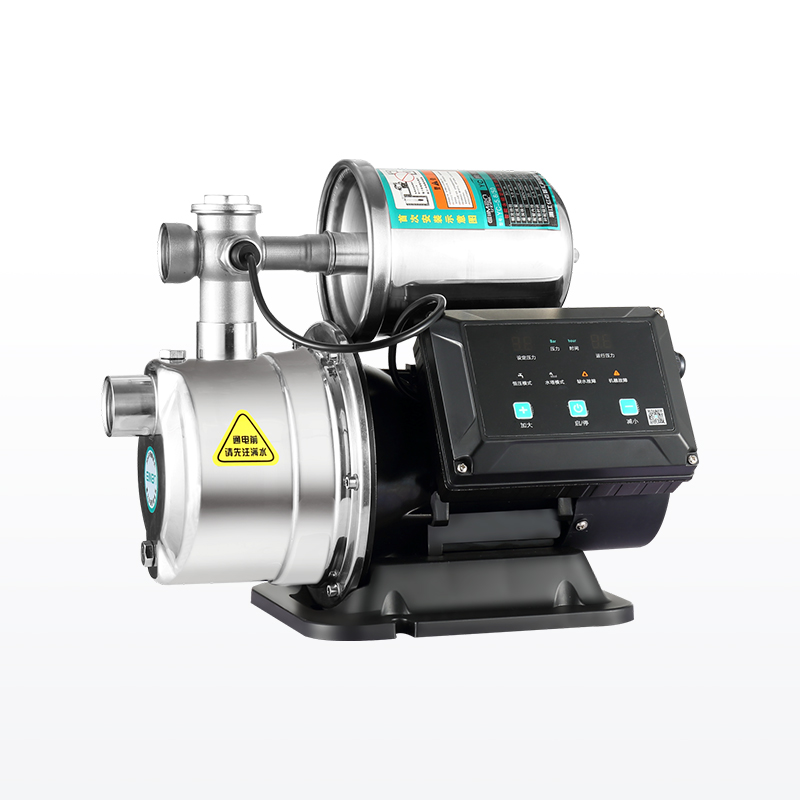

Facilities often select 304 or 316L stainless steel for its exceptional corrosion resistance. An industrial stainless water pump handles aggressive fluids well, resisting rust and chemical degradation on its wetted surfaces. However, the durability of the pump casing does not protect the mechanical seal from fluid-specific degradation. The seal remains the most vulnerable point in the entire pumping system. If the seal fails, the robust nature of the stainless steel casing becomes irrelevant.
Metallurgical and chemical interplay heavily influences seal survival. High chloride content or low pH environments cause crevice corrosion. This localized corrosion attacks areas under seal sleeves, O-ring grooves, or carbon binders. Structural failure becomes inevitable if the metallurgy and seal materials do not match the fluid profile perfectly. You must evaluate the entire wetted assembly, not just the primary casing material.
The fluid being pumped acts as a critical lubricating film between the seal faces. This film is typically only one micron thick. It prevents the two faces from making direct, dry contact. If the fluid lacks lubricity, vaporizes, or contains aggressive chemicals, this microscopic barrier breaks down. Water quality acts as the absolute determining factor in mechanical seal survival. Without that one-micron film, friction generates massive heat, leading to thermal cracking and catastrophic seal failure.
You must establish the baseline pH range of your fluid before selecting any seal components. Acidic and alkaline fluids attack seal materials differently. Dissolved minerals, chlorides, and sanitizing chemicals aggressively target specific seal faces and secondary elastomers. Chlorine, chlorine dioxide, and ozone act as strong oxidizers in water treatment applications. They chemically attack carbon binders and degrade standard face materials rapidly. You must map out every chemical additive present in the water stream.
Silt, sand, pipe scale, catalysts, and biological matter drastically impact seal life. These particulates penetrate the microscopic fluid film between the seal faces. Once inside, they act like grinding paste. They cause scoring, micro-chipping, and premature wear. Softer seal faces, like carbon or ceramic, deteriorate quickly under these abrasive conditions. You must quantify the TSS levels to determine if hard-on-hard seal faces or external flush plans are necessary.
Dissolved salts, calcium, magnesium, and sugar solutions behave unpredictably at the seal face. Atmospheric exposure causes water vaporization at the outer edge of the face. This vaporization leaves behind abrasive crystal deposits. These crystals grind down the seal faces during rotation, leading to rapid wear and leakage. High TDS applications almost always require an external quench to wash away these deposits before they can damage the seal faces.
High-temperature boiler feed water and condensate present unique physical challenges. An industrial multistage pump often operates near the fluid's boiling point. Vapor pressure margin is a critical concept here. If the fluid's temperature at the seal face exceeds its boiling point at the local chamber pressure, the liquid film flashes to steam. This causes dry running, face popping, and immediate seal failure. You must maintain adequate cooling or pressure in the seal chamber.
Pumping Reverse Osmosis (RO), Deionized (DI), or ultra-pure water creates specific engineering hurdles. Clean water is highly aggressive. It actively strips away necessary lubricating films because it is hungry for ions. This lack of lubrication causes high friction, rapid heat generation, and thermal checking on the seal faces. Standard carbon faces often fail in these environments because the water provides zero natural lubricity.
This combination serves standard, clean municipal water applications well. It is common in low-pressure industrial water supply pump systems. Carbon-graphite offers excellent self-lubricating properties and remains highly cost-effective. However, it is highly susceptible to chemical attack from strong oxidizers. It also fails quickly under thermal shock or physical erosion by particulates. Use this only when the water is clean, cool, and chemically neutral.
Abrasive fluids and high-pressure systems require harder materials. Heavy-duty high flow stainless pump operations rely heavily on Silicon Carbide. Alpha-Sintered SiC provides excellent chemical resistance across the entire pH scale. Reaction-Bonded SiC contains free silicon, making it susceptible to chemical degradation in strong acids or bases. Both offer extreme hardness and wear resistance but risk brittle fracture if dry running occurs. They handle high TSS environments exceptionally well.
Extreme high-pressure environments, thermal cycling, and high mechanical shock applications demand Tungsten Carbide. TC resists mechanical impact and fracturing exceptionally well. However, it is heavier and more expensive than SiC. It also offers less chemical resistance in chlorinated or acidic water profiles due to binder leaching. Cobalt-bound TC leaches quickly in water, so nickel-bound TC is preferred for water applications.
Applications requiring high-speed rotation or marginal lubrication benefit from dissimilar faces. Pure water or hot water supply systems often use this pairing. It offers a lower coefficient of friction and superior dry-running tolerance compared to hard-on-hard faces. Its main limitation is poor performance in high-particulate concentrations. The hard SiC face will quickly grind particulates into the softer carbon face, destroying it.
Seal Face Material Pairing | Best Application Environment | Primary Technical Advantage | Main Operational Limitation |
|---|---|---|---|
Carbon vs. Ceramic | Clean, low-pressure water | Cost-effective, self-lubricating | Poor abrasion resistance, fails in high TSS |
SiC vs. SiC | Abrasive, high-pressure fluids | Extreme hardness, wear resistance | Risk of brittle fracture during dry run |
Tungsten Carbide vs. SiC | High mechanical shock, vibration | Impact and fracture resistant | Binder leaching in acidic water |
SiC vs. Carbon | Marginal lubrication (RO/DI water) | Low friction, dry-run tolerant | Fails rapidly in high-particulate fluids |
EPDM performs exceptionally well in hot water, steam, polar solvents, and mild acids or alkalis. It maintains elasticity across a wide temperature range, making it a staple in water treatment. However, a critical warning applies. EPDM is completely incompatible with petroleum-based oils, hydrocarbons, or organic solvents. Exposure causes immediate swelling and rapid disintegration of the O-ring. Even trace amounts of lubricating oil in the water stream will destroy an EPDM seal.
FKM offers high versatility for water containing oils, hydrocarbons, mineral acids, or chemical additives. It handles mixed-fluid environments reliably. Its limitations emerge in high-temperature water applications. FKM degrades rapidly in high-temperature steam, hot water over 120°C (250°F), or hot aqueous amines. If your process involves hot water, FKM will harden, crack, and fail prematurely.
Highly aggressive chemical mixtures and extreme pH fluids require PTFE or FFKM. High-temperature CIP (Clean-in-Place) sterilization cycles also demand these materials. PTFE lacks elasticity and is prone to cold flow (creep) if thermal cycles vary wildly. FFKM provides unparalleled chemical and thermal limits but introduces significant upfront material costs. Use FFKM only when standard elastomers cannot survive the chemical profile.
High-pressure systems face unique elastomer challenges. Rapid pressure drops cause dissolved gases in the water to expand violently within the elastomer pores. This expansion tears the O-ring apart internally, a phenomenon known as explosive decompression. High-durometer, ED-resistant compounds are strictly required to prevent this failure mechanism in high-pressure boiler feed or reverse osmosis applications.
Single mechanical seals work best for non-hazardous, moderately clean water. They represent the lowest upfront cost for facility managers. However, they offer no secondary containment. If the main seal faces fail, the process fluid leaks directly into the surrounding environment. You should only use single seals when fluid leakage does not pose a safety, environmental, or severe operational risk.
High-TSS fluids, hazardous water treatment chemicals, and high-pressure environments demand double mechanical seals. Dual pressurized systems use a barrier fluid. This keeps a clean external fluid at a higher pressure than the pump stuffing box. It ensures no process fluid escapes and constantly lubricates the faces. Dual unpressurized systems use a buffer fluid. This acts as a containment chamber to catch minor leaks and prevent environmental emissions.
Component seals require manual axial setting during installation. They are highly vulnerable to installation errors. Finger grease on faces or improper spring tension leads to immediate failure. Cartridge seals arrive pre-assembled and pre-set from the factory. They slide onto the shaft as a single unit. This eliminates installation variables, protects the delicate faces during handling, and significantly improves long-term reliability.
Analyze your fluid's complete chemical and physical profile, including pH, TSS, and TDS, before selecting any seal materials.
Upgrade to Silicon Carbide faces if your system handles abrasive particulates, pipe scale, or ultra-pure water.
Verify elastomer compatibility against all potential trace chemicals, especially hydrocarbons, and maximum operating temperatures.
Install cartridge seals instead of component seals to eliminate manual installation errors and reduce maintenance downtime.
Implement dual pressurized seals with an appropriate API flush plan for hazardous or highly abrasive fluid applications to ensure complete containment.
A: Pure water, like RO or DI water, lacks natural dissolved minerals. It actively strips away the microscopic lubricating film between seal faces. This causes high friction, rapid heat generation, and thermal cracking.
A: No. EPDM is strictly incompatible with petroleum-based oils and hydrocarbons. Even trace amounts will cause the elastomer to swell, lose elasticity, and disintegrate rapidly.
A: Cartridge seals are pre-assembled and pre-tensioned at the factory. This eliminates manual measurement errors, prevents contamination during installation, and drastically reduces the time required for pump maintenance.
A: High temperatures bring the fluid closer to its boiling point. If the temperature at the seal face exceeds the boiling point at that specific chamber pressure, the liquid flashes to steam, causing dry running.
A: Choose Tungsten Carbide for applications involving extreme mechanical shock, heavy vibration, or severe thermal cycling. It resists fracturing better than Silicon Carbide, though it has lower chemical resistance.
A: API Plan 62 involves introducing a low-pressure external fluid to the atmospheric side of the seal. It prevents dissolved solids from crystallizing and scoring the seal faces.
