As global energy prices continue their relentless upward trajectory, facility managers and industrial operators face mounting pressure to slash operational costs. Commercial water systems, notoriously power-hungry, consume a massive share of daily electricity. For decades, traditional induction pumps have operated at full tilt—regardless of actual demand—bleeding significant power and driving up utility bills. Today, this outdated, brute-force method of fluid management is no longer financially sustainable.
Fortunately, modern engineering provides a highly practical and immediate solution. By shifting away from legacy systems, facilities can drastically cut overhead while improving mechanical reliability. In this comprehensive technical guide, we will explore the precise mechanics of how an advanced PM VFD pump saves energy, compare its internal architecture to standard models, and demonstrate why upgrading is one of the most sound capital investments you can make for your infrastructure.
Zero Rotor Energy Loss: Unlike standard induction models, permanent magnet motors utilize rare-earth magnets to establish their own magnetic field. This eliminates rotor copper losses entirely, maximizing the conversion of electricity into mechanical thrust.
Demand-Based Operation: Integrated Variable Frequency Drives (VFDs) dynamically adjust the motor's rotational speed in real-time to match exact fluid demand, halting power waste at the source.
Unwavering Pressure: These sophisticated systems function as highly stable constant pressure networks, delivering consistent water flow while consuming only the precise amount of electricity required at any given millisecond.
Rapid ROI: Despite a slightly higher initial capital expenditure, the dramatic reduction in operational electricity bills yields a swift payback period, often within 12 to 24 months.
IE5 Ultra-Premium Efficiency: Permanent magnet motors consistently exceed the stringent global IE4 benchmarks, setting the standard for IE5 energy efficiency in industrial fluid dynamics.
To truly grasp the energy-saving capabilities of this equipment, we must break down its core components. This advanced fluid delivery system merges two distinct, highly efficient technologies: a Permanent Magnet Synchronous Motor (PMSM) and a Variable Frequency Drive (VFD).
Traditional setups rely on AC induction motors. These legacy motors must draw electrical current from the grid simply to induce a magnetic field in the rotor before any actual pumping occurs. Conversely, a PMSM utilizes high-strength rare-earth magnets embedded directly into the rotor itself. This fundamental architectural shift eliminates the need for electrical induction, creating a vastly more streamlined power conversion process. Acting as the brain of the operation, the VFD modulates the electrical frequency supplied to the motor, controlling its rotational speed with absolute precision.
Within industrial engineering circles, this setup is frequently referred to as an intelligent water pump. The "intelligence" stems from a sophisticated closed-loop control mechanism. High-precision pressure and flow sensors are strategically installed within the pipeline network. As water flows through the pipes, these sensors continuously monitor fluid conditions and transmit real-time analog data (typically 4-20mA signals) back to the VFD's microprocessor.
Using a highly responsive Proportional-Integral-Derivative (PID) algorithm, the drive calculates the exact motor speed required to maintain your desired setpoint. If a downstream valve closes and demand drops, the system automatically decelerates. No human intervention is required. This automated, split-second responsiveness forms the very foundation of its superior energy conservation.
How exactly does the internal geometry of these motors translate to lower utility bills? The answer lies in eliminating the inherent flaws of 20th-century motor design.
The primary source of energy hemorrhage in a conventional induction motor is known as "rotor copper loss." In a standard setup, a considerable portion of incoming electricity is consumed just to magnetize the rotor. This magnetization process inevitably generates electrical resistance, which translates directly into wasted kilowatt-hours. A permanent magnet motor pump circumvents this inefficiency entirely. By utilizing rare-earth materials—such as Neodymium-Iron-Boron (NdFeB)—the rotor possesses its own inherent, permanent magnetic field. Because the motor does not need to siphon electricity from the grid to magnetize the rotor, rotor copper losses drop to absolute zero.
Furthermore, we must consider synchronous speed. In standard AC induction motors, the rotor must spin slightly slower than the rotating magnetic field generated by the stator. Engineers call this speed difference "slip." While slip is mechanically necessary for an induction motor to function, it is inherently inefficient, causing a continuous, unavoidable loss of kinetic energy. Permanent magnet motors operate synchronously. The magnetic field of the permanent magnets locks perfectly into the rotating magnetic field of the stator. With zero slip, lagging energy loss is eradicated. Every single rotation transfers maximum power directly to the pump impeller.
From a thermodynamic standpoint, energy not converted into mechanical work is lost as heat. I have walked into countless mechanical rooms where standard induction motors are baking at over 80°C. That heat is literally your money vanishing into the air. Due to the total absence of rotor copper losses and slip, permanent magnet motors operate at significantly lower temperatures. This cooler operation preserves electrical energy and drastically reduces thermal stress on the motor's bearings and insulation, resulting in a more durable pumping system.
The secondary, yet equally vital, mechanism for energy conservation lies within the Variable Frequency Drive. Traditional pumping systems typically operate on a rigid, binary "on/off" basis. When activated, they run at 100% capacity, regardless of whether the facility requires maximum flow or just a tiny fraction of it. To control the resulting overpressure, operators often rely on throttling valves to create artificial resistance. Imagine driving a car with the accelerator pressed to the floor while simultaneously riding the brake—it is an enormous, costly waste of energy.
The VFD eliminates this primitive inefficiency by scaling its speed based on real-time requirements. If the actual water demand is only 40%, the VFD lowers the motor's frequency, allowing the pump to operate precisely at 40% capacity. No throttling valves. No artificial resistance. Just exact power delivery.
This variable speed capability is precisely what allows the system to function as a highly efficient constant pressure pump. To understand the profound financial impact of this, we must look at the Affinity Laws of centrifugal pumps, which state that the power consumed by a pump is proportional to the cube of its rotational speed.
This mathematical principle is the secret weapon of energy savings:
If the pump speed is reduced by just 20% (operating at 80% speed), power consumption drops to approximately 51% of full load.
If the pump speed is reduced by 50%, power consumption plummets to a mere 12.5% of maximum capacity.
By continuously modulating speed to maintain stable pressure as faucets or industrial valves open and close, the VFD ensures the pump rarely runs at full speed. This captures exponential energy savings during the long periods of partial load that define typical daily operation.
To objectively evaluate the benefits, let us compare the permanent magnet architecture against standard AC induction models across several critical engineering metrics.
Feature / Metric | Traditional AC Induction Pump | PM VFD Pump (IE5 Standard) |
|---|---|---|
Rotor Energy Loss | High (Requires grid power to magnetize) | Zero (Permanent magnets provide field) |
Motor Slip | Yes (Rotor lags behind stator field) | None (Synchronous operation) |
Partial Load Efficiency | Drops precipitously below 75% load | Maintains >90% efficiency even at 30% load |
Operating Temperature | High (Excess heat degrades components) | Low (Cooler operation extends lifespan) |
Size & Weight | Bulky and heavy | Up to 50% smaller and lighter (High power density) |
Looking at the broader macroeconomic and regulatory landscape, the transition toward permanent magnet technology is rapidly accelerating. Industry analysis reveals a massive global pivot driven by aggressive decarbonization goals and power grid strains.
Regulatory frameworks are systematically phasing out low-efficiency motors. For instance, updated mandates from the U.S. Department of Energy (DOE) and the European Union’s Ecodesign Directive are establishing stringent new baselines, making older IE2 and IE3 induction motors obsolete for new commercial installations. Market analysts note that heavy industries, municipal water treatment facilities, and large-scale commercial real estate developers are no longer viewing IE5 permanent magnet pumps as optional upgrades. Instead, they are the new standard.
The consensus across engineering journals is clear: as corporate ESG (Environmental, Social, and Governance) targets become stricter and grid electricity prices remain volatile, the upfront investment in synchronous magnetic technology is the most reliable strategy to future-proof fluid management infrastructure against regulatory penalties and soaring operational costs.
From a purely financial perspective, electricity costs constitute the vast majority of a pump's Total Cost of Ownership (TCO). Over a typical 10-to-15-year lifecycle, the initial purchase price of a pump accounts for less than 10% of its total cost. Astonishingly, energy consumption accounts for 80% to 85%. As industrial energy tariffs escalate globally, the financial penalty for operating inefficient machinery grows heavier each year.
Investing in an energy-saving water pump does require a slightly higher initial capital outlay, primarily due to the cost of rare-earth metals and advanced VFD electronics. However, the Return on Investment (ROI) is highly predictable and incredibly rapid.
Consider a commercial facility operating a 15 kW (20 HP) pump for 12 hours a day, 300 days a year. A traditional induction pump running at full speed might consume 54,000 kWh annually. By utilizing the Affinity Laws to match variable demand, a PM VFD system typically reduces energy consumption by 40%. Saving roughly 21,600 kWh per year at an average industrial rate of $0.15 per kWh yields an annual cash savings of over $3,200. In most commercial scenarios, the energy savings completely offset the premium purchase price within 12 to 24 months. Afterward, those savings translate directly into pure operational profitability.
In addition, the financial windfalls extend well beyond electricity bills. The integration of a VFD provides a crucial "soft start" and "soft stop" capability. Instead of slamming the plumbing system with full voltage—which causes violent mechanical shock and destructive water hammer—the VFD gradually ramps up the motor speed. This gentle, controlled operation significantly reduces mechanical wear on bearings, mechanical seals, and impellers, leading to drastically fewer breakdowns and lower annual maintenance expenditures.
Investing in advanced pumping technology requires careful consideration of system requirements. Because this technology represents a higher initial capital expenditure than a standard induction model, you must evaluate technical parameters to ensure maximum ROI.
Avoid the Oversizing Trap

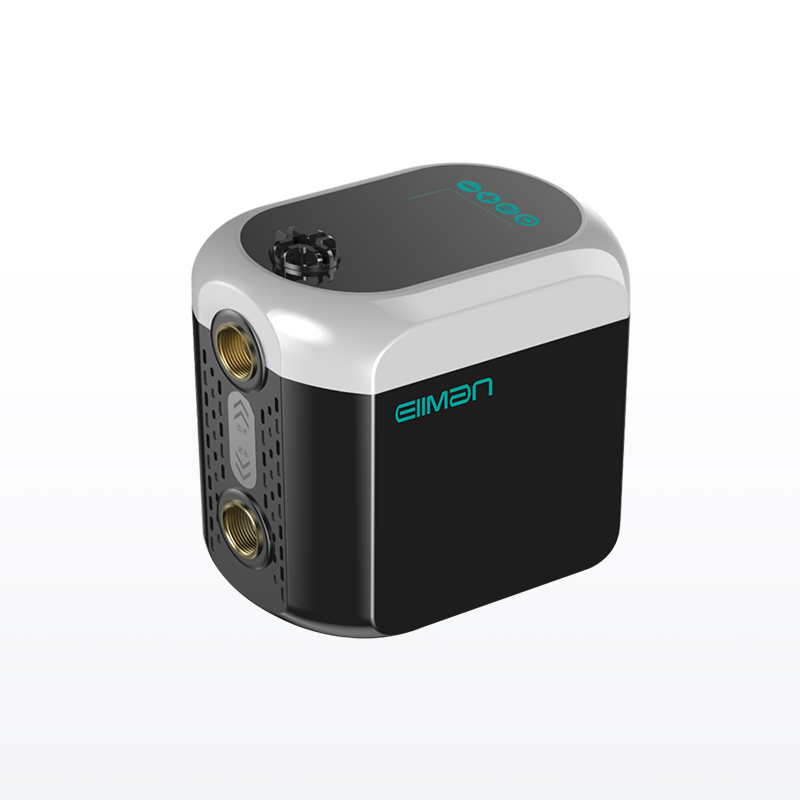

The most common engineering error in fluid dynamics is oversizing the pump. Traditional pumps are often massively oversized "just to be safe" for peak demand, forcing them to run inefficiently. While a VFD can adjust speed to mitigate oversizing penalties, selecting the correct base specifications remains critical. You must accurately calculate the Total Dynamic Head (TDH) and the required flow rate. For example, if your facility requires high-pressure boosting across multiple floors, look for stainless steel multistage configurations (such as the YC-S-400 series architecture) that pair IE5 motors with robust 304/316 stainless steel impellers. This ensures the motor operates within its peak efficiency sweet spot—usually between 60% and 90% of its maximum rated speed.
Scrutinize the Drive and Sensors
The mechanical pump is only as good as its electronic nervous system. When reviewing specifications, prioritize systems equipped with industrial-grade PID controllers capable of withstanding electrical grid fluctuations. Furthermore, evaluate the quality of the pressure sensors. High-quality stainless steel transducers offer superior resistance to corrosion and provide highly accurate analog signals to the VFD, ensuring seamless speed modulation without annoying pressure spikes or system "hunting."
Verify Efficiency Certifications
In the industrial equipment sector, third-party certifications are the ultimate objective indicators of performance. Look for motors that explicitly state compliance with IE4 or Ultra-Premium IE5 efficiency classes. Do not settle for standard premium efficiency if your goal is long-term cost reduction.
Upgrading your facility's fluid management infrastructure is no longer just an operational choice; it is a critical financial strategy. By abandoning the wasteful, always-on mechanics of traditional induction motors, you instantly stop bleeding capital through your utility bills.
A permanent magnet variable frequency system tackles high energy costs at the source. By combining zero-slip rare-earth magnetic rotors with intelligent, demand-responsive drives, this technology offers unparalleled efficiency, unwavering water pressure, and significantly reduced mechanical wear. The math is undeniable: the rapid return on investment makes the initial purchase a highly profitable long-term asset.
Stop wasting money on outdated, inefficient equipment. Evaluate your current fluid demands, embrace the IE5 standard, and secure your facility's energy future today. For professional-grade solutions tailored to commercial and industrial applications, explore the high-efficiency systems available at Eiiman to find the perfect match for your infrastructure.
Depending on the specific application and daily load variations, these systems typically reduce energy consumption by 30% to 60% compared to standard induction pumps running at a fixed speed. This massive reduction is governed by the Affinity Laws of fluid dynamics. Because water demand fluctuates throughout the day in almost all residential and industrial applications, the VFD constantly lowers the motor speed during off-peak times, causing energy savings to compound rapidly.
Yes, the vast majority of these systems are engineered specifically to operate as constant pressure networks. Traditional systems use clumsy mechanical pressure-reducing valves or large pressure tanks that cause noticeable fluctuations in water flow. In contrast, this technology utilizes an electronic PID loop. When a user opens a valve, the sensor detects the minute pressure drop in milliseconds and signals the drive to increase the motor's RPM, ensuring the water pressure delivered to the end-user remains perfectly stable regardless of how many taps are open.
While you can add a standalone VFD to an existing AC induction motor to gain variable speed control, you will not achieve the same level of efficiency as a true PM VFD pump. Standard induction motors still suffer from rotor copper losses and slip. Furthermore, older induction motors may not have inverter-duty insulation, meaning the high-frequency electrical pulses from a newly added VFD could prematurely destroy the motor windings. Upgrading to an integrated permanent magnet system is far more efficient and reliable.
Running any pump without fluid (dry running) is highly destructive, as the water acts as a crucial lubricant and coolant for the mechanical seals. However, intelligent PM VFD pumps feature advanced built-in protections. The VFD continuously monitors electrical current and motor load. If the system detects a sudden drop in load indicative of dry running, the microprocessor instantly triggers a fault code and shuts down the motor within seconds. This automated protection prevents catastrophic damage to the mechanical seals and the permanent magnets.
High-quality rare-earth magnets, such as Neodymium-Iron-Boron, retain their magnetic flux indefinitely under normal operating conditions. The only real threat to these magnets is severe thermal demagnetization, which occurs if the motor exceeds its specific extreme temperature limit. However, modern intelligent pumps are equipped with internal thermal sensors embedded in the windings. If temperatures approach critical thresholds, the drive automatically cuts power to protect the magnets, ensuring zero loss of magnetic strength over the pump's entire lifespan.
Not at all. In reality, they generally require significantly less mechanical maintenance than traditional fixed-speed pumps. The integrated drive provides a gentle "soft start" and "soft stop" feature. Instead of slamming the pump to full speed instantly, the system gradually ramps up the RPM, eliminating pipe stress and mechanical shock. Furthermore, because the rotor does not generate induced electrical currents, it produces virtually no excess heat. This cooler operating temperature vastly extends the lifespan of the bearing grease, mechanical seals, and stator insulation.
