| Model | Voltage (V) | Power (W) | Max flow (m³/h) | Max head (m) | Max Suction (m) | Piping inner diameter (mm) | Cable (M) |
| SWP-6-25-110-1200 | 110V | 1200W | 6 | 25 | 8 | 25 | 1.2 |
| SWP-30-20-110-1200 | 110V | 1200W | 30 | 20 | 8 | 50 | 1.2 |
| SWP-45-15-110-1200 | 110V | 1200W | 45 | 15 | 8 | 80 | 1.2 |

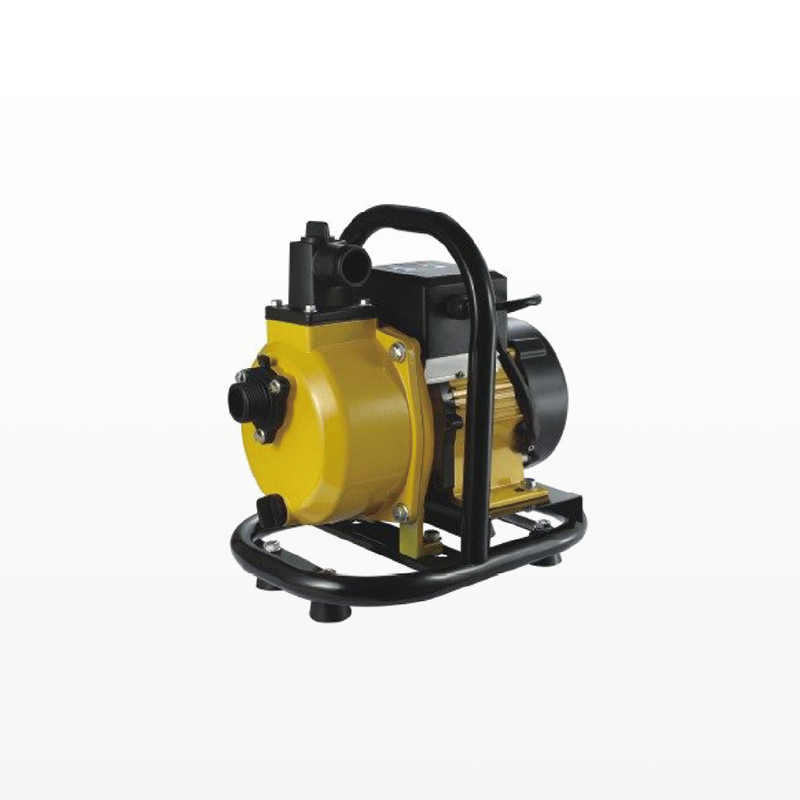

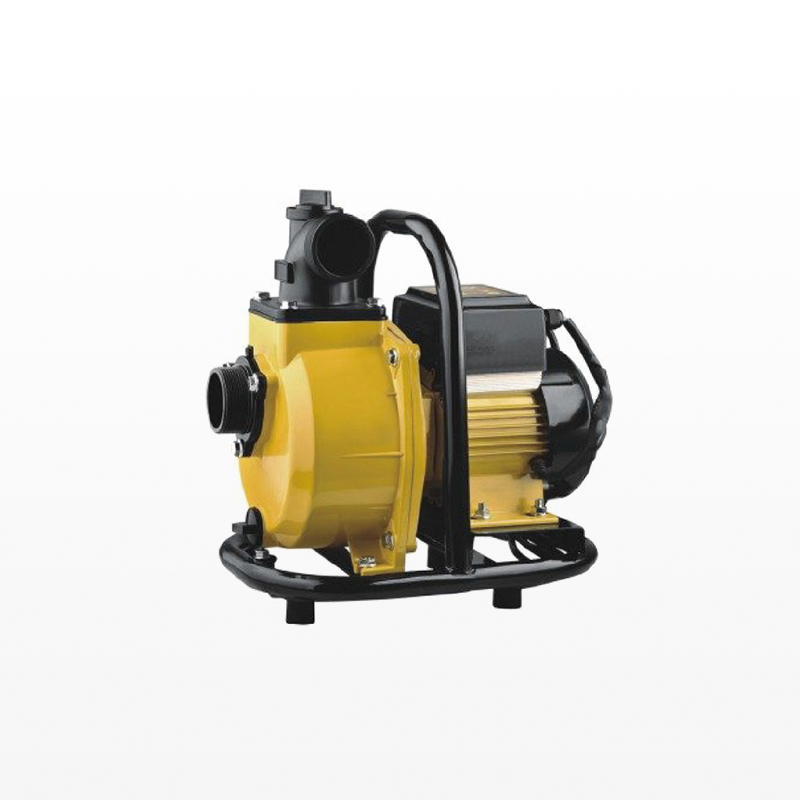

The SWP series is a user-centric permanent magnet variable frequency pump designed for clean water applications, with a focus on flexible piping compatibility. Developed by Yimai Zhihui, it balances energy efficiency, consistent performance, and adaptability to different household and light commercial piping systems—making it a top choice for homes, small offices, and rural buildings.
The SWP series includes three models optimized for varying flow rates and piping sizes:
SWP-6-25-110-1200: 110V voltage, 1200W power, max flow 6 m³/h, max head 25 m, max suction 8 m, 25mm piping inner diameter, 1.2M cable.
SWP-30-20-110-1200: 110V voltage, 1200W power, max flow 30 m³/h, max head 20 m, max suction 8 m, 50mm piping inner diameter, 1.2M cable.
SWP-45-15-110-1200: 110V voltage, 1200W power, max flow 45 m³/h, max head 15 m, max suction 8 m, 80mm piping inner diameter, 1.2M cable.
All models support media temperatures ≤60℃, pH 6.5–8.5, and solid impurities ≤0.1% (particle size ≤0.2mm).
Piping Inner Diameter Options: With 25mm, 50mm, and 80mm options, the SWP series fits most existing household and small commercial piping systems—no need for costly piping modifications.
Stable Flow & Pressure: Maintains consistent water flow even during peak usage (e.g., morning showers + dishwashing), avoiding pressure drops common with traditional pumps.
Energy Savings: Cuts energy consumption by 30%–50% vs. fixed-speed pumps, lowering monthly utility bills for long-term savings.
Compact & Quiet Design: Small footprint fits tight spaces (e.g., utility closets), and low-noise motor (≤52 dB) ensures it doesn’t disrupt daily life.
Flat Houses & Small Apartments (25mm Model): The SWP-6-25-110-1200 is perfect for 1–2 bedroom flats, providing sufficient flow for basic needs (taps, small showers, and a washing machine).
Medium Villas (50mm Model): The SWP-30-20-110-1200 supports 3–4 bedroom villas, handling simultaneous use of multiple appliances and upper-floor water supply.
Large Residences & Small Offices (80mm Model): The SWP-45-15-110-1200 serves 5+ bedroom homes or small offices, ensuring steady water for multiple users and light commercial equipment.
Ideal for small-scale industrial equipment (e.g., mini lathes, small compressors):
Circulates clean water to cool machinery, preventing overheating and extending equipment life.
Adjustable speed matches cooling demand, avoiding energy waste during low-load periods.
Integrates seamlessly with residential solar water heating systems:
Circulates water between solar panels and storage tanks, optimizing heat transfer for faster hot water production.
Works with 110V solar inverters, aligning with renewable energy setups.
Under Floor Heating Circulation
Cooling Of Industrial Equipment
Hot Water Facilities For Bath Places/Clubs
Solar Energy Circulation
Air Energy Circulation
Water Supply From The Water Tower
Our Certificate
Packing & Shipping
|
|
PAYMENT T/T,Westem Union,MoneyGram,Paypal
DELIVERY Safe,Fast,and Effective
