| Quantity: | |
|---|---|
| Product Name | Series | Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Rated Voltage (V) | Rated Current (A) | Impeller (Stages) | Speed Range (r/min) | Inlet/Outlet Size | Insulation Class | Frequency | Protection Level | Self-priming Height | Water Temp. Range |
| PM VFD Multistage Self-Priming Centrifugal Pump | YC | YC-400 | 400 W | 2.5 m³/h | 22 m | 4.5 m³/h | 40 m | 220 V | 2.8 A | 3 | 1000～4300r/min | DN25 | F | 50Hz/60Hz | IPX4 | 5 m | ≤70 ℃ |
| YC-700 | 700 W | 3 m³/h | 33 m | 5.5 m³/h | 50 m | 220 V | 5.2 A | 3 | 1000～4800r/min | DN25 | F | 50Hz/60Hz | IPX4 | 5 m | ≤70 ℃ | ||
| YC-900 | 900 W | 3.5 m³/h | 35 m | 6 m³/h | 60 m | 220 V | 6 A | 3 | 1000～4800r/min | DN25 | F | 50Hz/60Hz | IPX4 | 5 m | ≤70 ℃ |

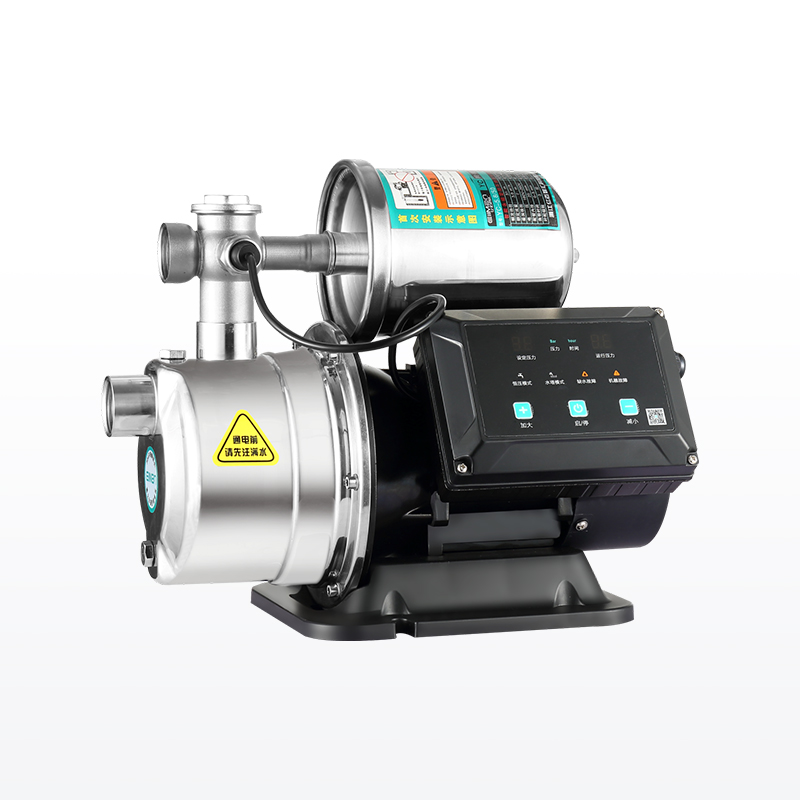

The YC-400 is a PM VFD Multistage Self-Priming Centrifugal Pump from the YC series, engineered for clean water with self-priming capabilities. It has a rated power of 400 W, rated voltage of 220 V, and rated current of 2.8 A. Key performance metrics: rated flow 2.5 m³/h, rated head 22 m, maximum flow 4.5 m³/h, maximum head 40 m. Unique to this model is its 5 m self-priming height—eliminating the need to pre-fill water before startup. It features 3 impeller stages, 1000～4300 r/min speed range, DN25 inlet/outlet size, F-class insulation, IPX4 protection, and a water temperature limit of ≤70 ℃. Medium requirements: pH 6.5–8.5, solid impurities ≤0.1% volume ratio, particle size ≤0.2 mm.
The “self-priming” design allows the pump to draw water from below its installation level (up to 5 m), making it perfect for well water extraction or low-level water sources. Combined with PM VFD technology, it adjusts speed to maintain consistent pressure and flow.
Self-Priming Convenience: 5 m self-priming height saves time—no manual water filling before use, which is a major advantage over non-self-priming pumps for well or tank water.
Energy-Saving VFD: Reduces energy use by 30%–50% vs. traditional pumps. The 1000～4300 r/min speed range adapts to low-flow needs (e.g., household faucets) and high-flow demands (e.g., small-scale irrigation).
Compact & Durable: DN25 size fits narrow pipelines in residential settings; 3 impeller stages and F-class insulation ensure long-term reliability. IPX4 protection safeguards against splashes in damp areas like basements.
Temperature Compatibility: ≤70 ℃ water temperature range is ideal for hot water circulation in homes or small bath facilities, without risking component overheating.
Well Water Extraction: Perfect for rural homes or villas without municipal water. Its 5 m self-priming height easily draws water from wells, and the 22 m rated head pushes water to upper floors. The inlet filter (required) prevents sand or debris from clogging the impeller.
Roof Water Tank Pressure Boost: For buildings with roof tanks, it increases water pressure to ensure consistent flow in lower floors. Its compact size fits in tank rooms, and VFD technology avoids energy waste during low-demand hours.
Under Floor Heating & Solar Circulation: Maintains steady flow (up to 4.5 m³/h) for underfloor heating, while its 70 ℃ tolerance works with solar water systems to circulate warm water for showers or taps.
Under Floor Heating Circulation
Cooling Of Industrial Equipment
Hot Water Facilities For Bath Places/Clubs
Solar Energy Circulation
Air Energy Circulation
Water Supply From The Water Tower
