| Quantity: | |
|---|---|
| Model | Voltage (V) | Power (W) | Power (HP) | Max flow (m³/h) | Max head (m) | Max Suction (m) | Outlet (Inch) | Cable (M) |
| HCPM-24-20-110-1100 Frame | 110V | 1100W | 1.5 | 24 | 20 | 8 | 2"*2" | 1.2 |
| HCPM-50-16-110-1500 Frame | 110V | 1500W | 2 | 50 | 16 | 8 | 3"*3" | 1.2 |

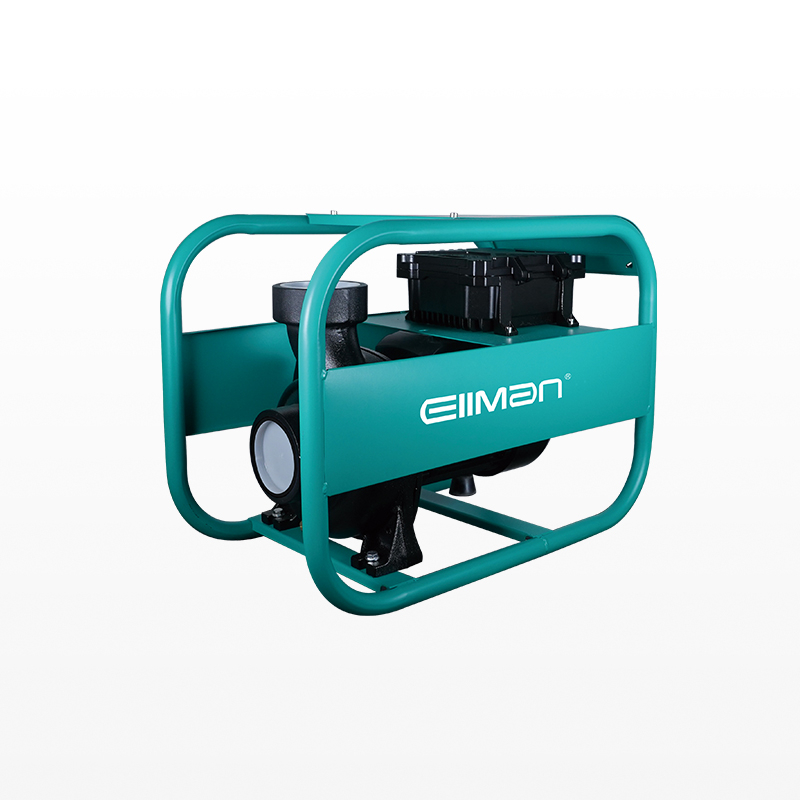

The HCPM series is a high-performance permanent magnet variable frequency pump designed exclusively for clean water mediums. Engineered by Yimai Zhihui, it integrates energy-saving technology, intelligent control, and durable construction to meet water supply and circulation needs in residential, commercial, and light industrial settings. Unlike traditional pumps, it adjusts speed dynamically based on water demand, ensuring optimal performance while minimizing energy waste.
The HCPM series offers two specialized models, each tailored to different flow and power requirements:
HCPM-24-20-110-1100 Frame: 110V voltage, 1100W (1.5 HP) power, max flow 24 m³/h, max head 20 m, max suction 8 m, 2"*2" outlet, 1.2M cable.
HCPM-50-16-110-1500 Frame: 110V voltage, 1500W (2 HP) power, max flow 50 m³/h, max head 16 m, max suction 8 m, 3"*3" outlet, 1.2M cable.
All models support media temperatures up to 60℃, pH 6.5–8.5, and solid impurities ≤0.1% (particle size ≤0.2mm).
Exceptional Energy Efficiency: Saves 30%–50% energy compared to traditional fixed-speed pumps, reducing long-term operational costs for households and small businesses.
High Flow Rate Performance: The HCPM-50-16 model delivers a max flow of 50 m³/h, making it ideal for large villas, duplex apartments, or small office buildings with high water demand.
Low Noise & Long Lifespan: Advanced permanent magnet motor design minimizes noise (≤55 dB) for quiet operation, while wear-resistant components extend service life by 2–3 times vs. conventional pumps.
Intelligent Speed Regulation: Automatically adjusts motor speed based on real-time water pressure, ensuring stable water supply without fluctuations—perfect for tap water pressurization or roof water tank boosting.
For villas, duplex apartments, or multi-family homes, the HCPM pump solves low water pressure issues:
Boosts tap water pressure for simultaneous use of showers, dishwashers, and washing machines.
Extracts well water efficiently and pressurizes roof water tanks to ensure consistent water flow on upper floors.
Maintains stable water circulation in underfloor heating systems:
Intelligent speed control keeps water temperature uniform across rooms, avoiding cold spots.
Energy-saving design reduces heating system energy consumption by aligning with heating demand.
Ideal for bath places, clubs, or small hotels:
Circulates hot water quickly to taps and showers, eliminating waiting time for hot water.
Handles high flow demands during peak hours without performance drops.
Under Floor Heating Circulation
Cooling Of Industrial Equipment
Hot Water Facilities For Bath Places/Clubs
Solar Energy Circulation
Air Energy Circulation
Water Supply From The Water Tower
Our Certificate
Packing & Shipping
|
|
PAYMENT T/T,Westem Union,MoneyGram,Paypal
DELIVERY Safe,Fast,and Effective
