| Quantity: | |
|---|---|
| Product Name | Series | Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Rated Voltage (V) | Rated Current (A) | Impeller (Stages) | Speed Range (r/min) | Inlet/Outlet Size | Insulation Class | Frequency | Protection Level | Water Temp. Range |
| SS-PM VFD Multistage Centrifugal Pump | YC-F | YC-F-400 | 400 W | 2.5 m³/h | 22 m | 4.8 m³/h | 40 m | 220 V | 3 A | 3 | 1000～4200r/min | DN25 | F | 50Hz/60Hz | IPX4 | ≤95 ℃ |
| YC-F-700 | 700 W | 3.5 m³/h | 30 m | 5.8 m³/h | 50 m | 220 V | 4.8 A | 3 | 1000～4600r/min | DN25 | F | 50Hz/60Hz | IPX4 | ≤95 ℃ | ||
| YC-F-900 | 900 W | 4 m³/h | 30 m | 6.5 m³/h | 60 m | 220 V | 6 A | 3 | 1000～4300r/min | DN25 | F | 50Hz/60Hz | IPX4 | ≤95 ℃ |

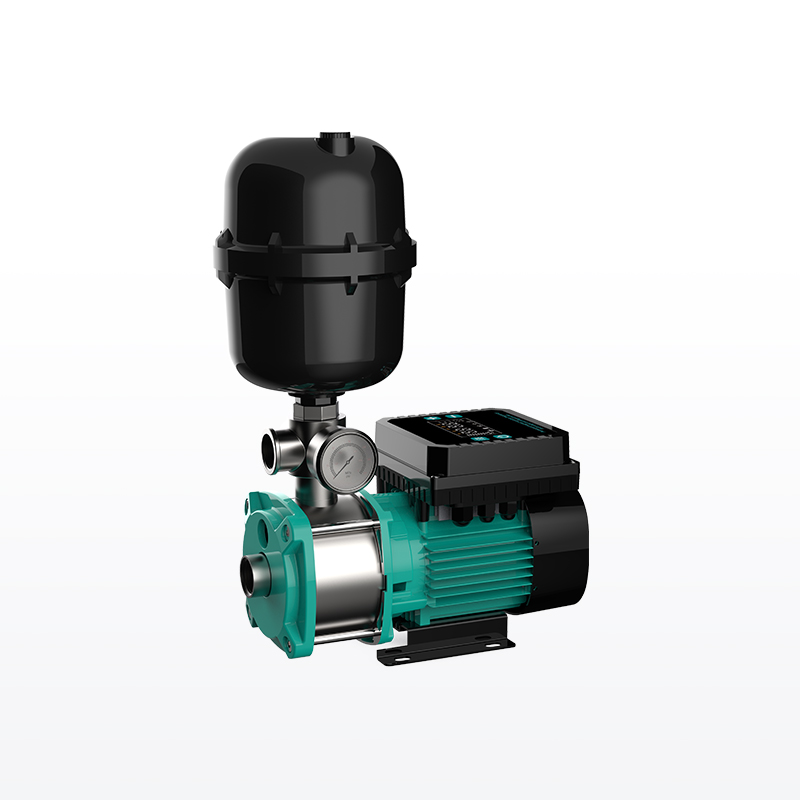

The YC-F-400 is a premium SS-PM VFD (Stainless Steel Permanent Magnet Variable Frequency Drive) Multistage Centrifugal Pump for high-demand clean water use. Constructed with stainless steel (safe for potable water), it features a 400W rated power, 2.5 m³/h rated flow, and 22 m rated head—with a maximum flow of 4.8 m³/h and an impressive 40 m maximum head. Its 3-stage impeller design boosts pressure, and it handles water temperatures up to 95℃—ideal for high-temperature applications (e.g., hot water facilities, under-floor heating). With DN25 ports, IPX4 protection, and Insulation Class F, it combines corrosion resistance, high performance, and durability.
Food-grade SS construction: Prevents rust and contamination, safe for drinking water and compliant with hygiene standards (e.g., kitchen use).
Low maintenance: Easy to clean, resisting damage from humid or coastal environments.
3-stage impeller: Achieves 40 m maximum head, pushing water to 3–4 floor high-rise villas or buildings with elevated demand.
Stable high-pressure performance: Maintains flow even at maximum height, avoiding upper-floor pressure drops.
95℃ temp limit: Supports hot water circulation (e.g., bath clubs, hotels) and under-floor heating systems, with heat-resistant seals to protect the motor.
Delivers pressure to 3–4 floor villas: Ensures strong flow for all taps, showers, and kitchens, with stainless steel safety for drinking water.
Reliable for large families: Handles high water demand (e.g., multiple users simultaneously).
Bath clubs & small hotels: Circulates 95℃ hot water, maintaining consistent temperatures for guests and reducing wait times.
Energy-efficient: PM VFD technology cuts energy use for 24/7 hot water circulation.
Under-floor heating: Circulates high-temp water to ensure uniform room heating.
Air energy compatibility: Improves heat exchange efficiency, lowering heating costs.
Under Floor Heating Circulation
Cooling Of Industrial Equipment
Hot Water Facilities For Bath Places/Clubs
Solar Energy Circulation
Air Energy Circulation
Water Supply From The Water Tower
Our Certificate
Packing & Shipping
|
|
PAYMENT T/T,Westem Union,MoneyGram,Paypal
DELIVERY Safe,Fast,and Effective
Q: What’s the benefit of stainless steel in the YC-F-400?
A: Stainless steel resists corrosion, extends service life, and is non-toxic for drinking water. It also withstands humid environments, making it suitable for bathrooms or coastal areas.
Q: Can it be used for agricultural irrigation?
A: It works for small-scale clean water irrigation but is optimized for high-temp/commercial use. For large-scale farming, choose models with higher flow rates.
Q: How does the 3-stage impeller outperform 2-stage designs?
A: 3-stage impellers add pressure in layers, reaching 40 m maximum head—ideal for high-rises. They also maintain more stable pressure at varying flow rates compared to 2-stage impellers.
