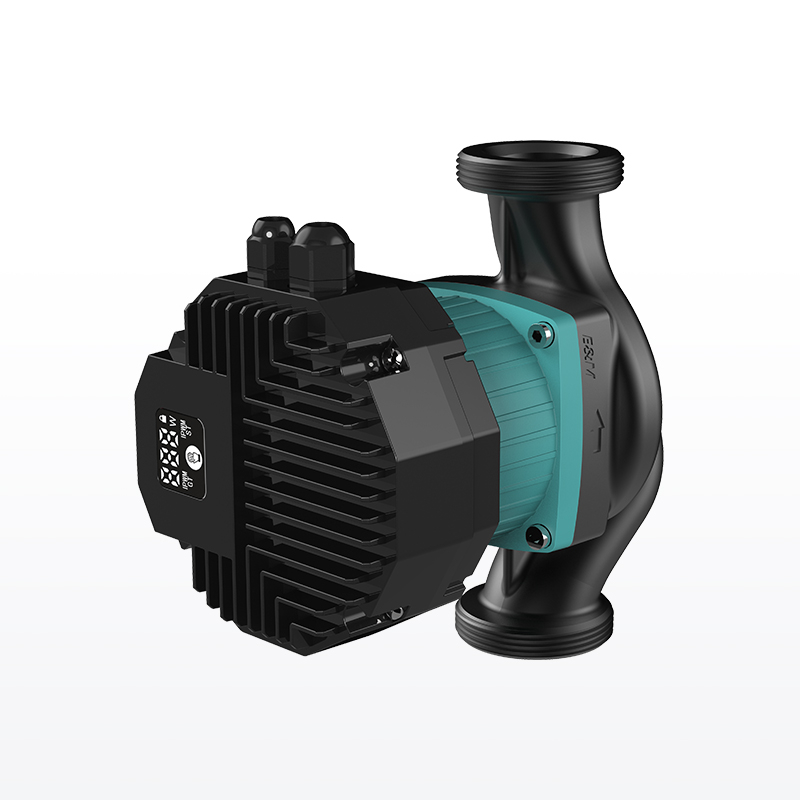

TPF32-10-180E Pipeline Pump

Usage Scenarios
It is most widely used in places with clean water as the main medium, such as household water, small office buildings, and rural buildings.

Product Attributes
The temperature of the conveying medium shall not exceed 60 ℃;
The pH value of the medium is between 6.5 and 8.5.
The volume ratio of solid impurities in water shall not exceed 0.1%, and the particle size shall not exceed 0.2mm.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Name

Series

Model

Power
(w)

Rated Flow
(m³/h)

Rated Head
(m)

Max Flow
(m³/h)

Max Head
(m)

Rated Voltage
(V)

Rated Current
(A)

Impeller
(Stages)

Speed Range
(r/min)

Inlet/Outlet Size

Insulation Class

Frequency

Protection Level

Water Temp. Range

PM VFD Circulation Pump

TPF

TPF32-10-180E

180 W

3.5 m³/h

8 m

9.5 m³/h

10 m

220V-240v

1.5 A

1

1500～4500r/min

DN32

F

50Hz/60Hz

IP66

≤95 ℃

TPF32-12-220E

220 W

4 m³/h

9 m

10 m³/h

12 m

220V-240v

1.8 A

1

1500～4800r/min

DN32

F

50Hz/60Hz

IP66

≤95 ℃

TPN

TPN32-16-280E

280 W

5 m³/h

10 m

11 m³/h

16 m

220V-240v

2.2 A

1

1500～5600r/min

DN32

F

50Hz/60Hz

IP66

≤95 ℃

TPN32-18-360E

360 W

6 m³/h

11 m

12 m³/h

18 m

220V-240v

2.7 A

1

1500～6000r/min

DN32

F

50Hz/60Hz

IP66

≤95 ℃

Product Overview

Basic Specifications

The TPF32-10-180E is a PM VFD Circulation Pump in the TPF series, built for high-flow clean water circulation in residential and commercial settings. It has a rated power of 180 W, rated voltage of 220V–240V, and rated current of 1.5 A. Key performance: rated flow 3.5 m³/h (higher than TPF25 models), rated head 8 m, maximum flow 9.5 m³/h, maximum head 10 m. It features 1 impeller stage, a speed range of 1500～4500 r/min, DN32 inlet/outlet size (larger than DN25 for higher flow), F-class insulation, IP66 protection (dust-tight, water-jet resistant), and a water temperature limit of ≤95 ℃. Medium requirements: pH 6.5–8.5, solid impurity volume ratio ≤0.1%, particle size ≤0.2 mm.

Core Function

Designed for high-flow circulation, its DN32 size and 9.5 m³/h max flow move large water volumes in closed loops. PM VFD technology adjusts speed to balance flow and energy use, while IP66 protection supports harsh installation environments.

Key Features

High-Flow DN32 Design: DN32 inlet/outlet size (wider than DN25) enables 3.5～9.5 m³/h flow—ideal for larger circulation systems (e.g., commercial solar setups or multi-room heating).

IP66 Rugged Protection: Dust-tight and water-jet resistant, making it suitable for outdoor installation (e.g., solar panel arrays) or dusty industrial areas. It outperforms IPX4 pumps in harsh conditions.

Energy-Efficient VFD: 180 W power saves 30%–50% energy vs. traditional high-flow pumps. The 1500～4500 r/min speed range adapts to low-flow (e.g., off-peak heating) and high-flow (e.g., peak cooling) needs.

Temperature Resilience: ≤95 ℃ water tolerance works with hot water circulation systems (e.g., bath clubs) or solar water heaters, ensuring consistent performance without component damage.

Scenario-Specific Solutions

Large-Scale Under Floor Heating: For commercial spaces (e.g., small offices) or large homes (3+ rooms), the 9.5 m³/h max flow circulates water quickly to heat all areas evenly. The DN32 size fits larger pipelines, reducing flow resistance.

Commercial Solar Energy Circulation: Installed outdoors (IP66), it circulates water between large solar panel banks and storage tanks. The 3.5 m³/h rated flow ensures efficient heat transfer, and VFD adjusts speed to match sunlight intensity.

Medium-Sized Equipment Cooling: For factory machines (e.g., small compressors) or commercial refrigeration units, it circulates cool water to prevent overheating. The high flow (up to 9.5 m³/h) ensures rapid heat dissipation, and IP66 protects against factory dust.
