| Quantity: | |
|---|---|
| Product Name | Series | Model | Power (w) | Rated Flow (m³/h) | Rated Head (m) | Max Flow (m³/h) | Max Head (m) | Rated Voltage (V) | Rated Current (A) | Impeller (Stages) | Speed Range (r/min) | Inlet/Outlet Size | Insulation Class | Frequency | Protection Level | Water Temp. Range |
| PM VFD Circulation Pump | TPF | TPF25-14-180E | 180 W | 2.5 m³/h | 10 m | 7 m³/h | 14 m | 220V-240v | 1.5 A | 1 | 1500～4300r/min | DN25 | F | 50Hz/60Hz | IP66 | ≤95 ℃ |
| TPF25-16-220E | 220 W | 3 m³/h | 11 m | 7.5 m³/h | 16 m | 220V-240v | 1.8 A | 1 | 1500～4600r/min | DN25 | F | 50Hz/60Hz | IP66 | ≤95 ℃ |

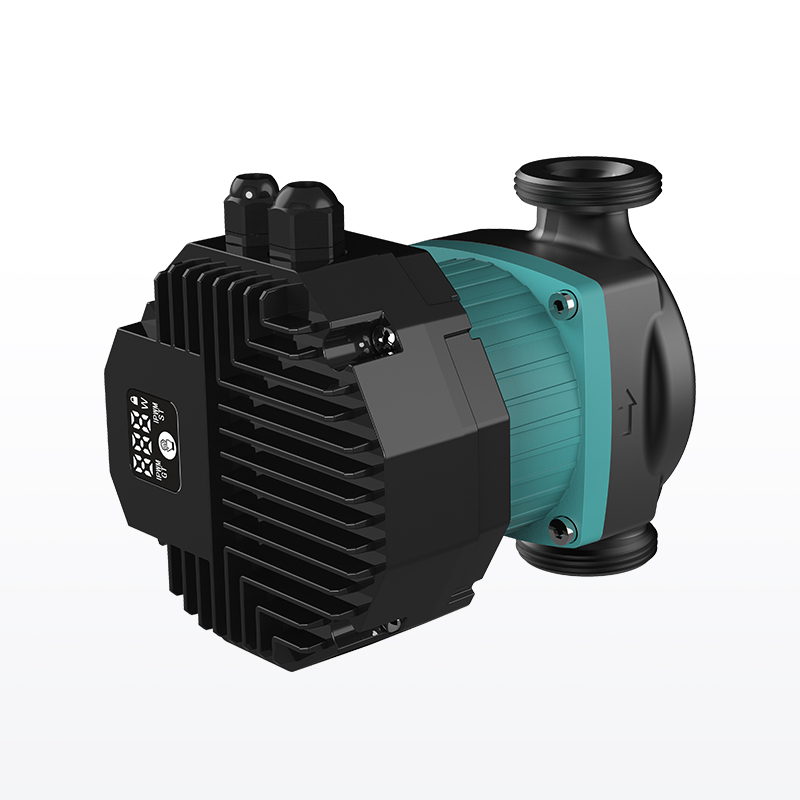

The TPF25-14-180E is a PM VFD Circulation Pump from the TPF series, designed for clean water circulation in residential and light commercial settings. It has a rated power of 180 W (lower than larger models), rated voltage of 220V–240V, and rated current of 1.5 A. Performance: rated flow 2.5 m³/h, rated head 10 m, maximum flow 7 m³/h, maximum head 14 m. It features 1 impeller stage, a speed range of 1500～4300 r/min, DN25 inlet/outlet size, F-class insulation, and IP66 protection (higher than IPX4, dust-tight and water-jet resistant). The water temperature limit is ≤95 ℃, with medium requirements: pH 6.5–8.5, solid impurities ≤0.1% volume ratio, particle size ≤0.2 mm.
As a circulation-focused pump, it excels at moving water in closed loops (e.g., heating, cooling systems). PM VFD technology allows precise speed control to match circulation needs, while IP66 protection enables outdoor or dusty installation.
IP66 High Protection: Dust-tight and resistant to powerful water jets (e.g., rain, hose spray). This makes it suitable for outdoor use (e.g., solar system circulation) or dusty industrial areas—unlike IPX4 pumps.
Low-Power Efficiency: 180 W rated power is ideal for small-scale circulation (e.g., home heating). It still saves 30%–50% energy vs. traditional circulation pumps, thanks to VFD technology.
Fast Circulation: 1500～4300 r/min speed range and 7 m³/h max flow ensure quick water movement in closed loops, which is critical for underfloor heating (even heat distribution) or equipment cooling (preventing overheating).
Compact Design: DN25 size and single impeller stage make it lightweight and easy to install in narrow spaces (e.g., behind boilers or in small mechanical rooms).
Under Floor Heating Circulation: Perfect for homes with underfloor heating. It circulates water at 2.5～7 m³/h, ensuring even heat across rooms. The VFD adjusts speed based on thermostat readings—slower when rooms are warm, faster when heating is needed—saving energy.
Industrial Equipment Cooling: For small factory machines (e.g., laser printers, small motors), it circulates cool water to prevent overheating. IP66 protection resists dust and water splashes in factory environments, and 14 m max head ensures water reaches equipment components.
Solar Energy Circulation: Installed outdoors (thanks to IP66), it circulates water between solar panels and home tanks. The 95 ℃ tolerance handles warm water from panels, and the VFD optimizes flow to maximize heat absorption.
Under Floor Heating Circulation
Cooling Of Industrial Equipment
Hot Water Facilities For Bath Places/Clubs
Solar Energy Circulation
Air Energy Circulation
Water Supply From The Water Tower
Our Certificate
Packing & Shipping
|
|
PAYMENT T/T,Westem Union,MoneyGram,Paypal
DELIVERY Safe,Fast,and Effective
