4DPC Submersible Sewage Pump

Usage Scenarios
It is most widely used in places with clean water as the main medium, such as household water, small office buildings, and rural buildings.

Product Attributes
The temperature of the conveying medium shall not exceed 60 ℃;
The pH value of the medium is between 6.5 and 8.5.
The volume ratio of solid impurities in water shall not exceed 0.1%, and the particle size shall not exceed 0.2mm.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Power （W）	Op. Voltage （DC）	OC Voltage （DC）	Max Flow （m³/h）	Max Head （m）	Outlet （inch）
4DSP6/45-72/900	900	72～120	＜160V	6	45	1.25″
4DSP6/61-72/1100	1100	72～120	＜160V	6	61	1.25″
4DSP6/61-110/1100	1100	110～160	＜210V	6	61	1.25″
4DSP6/92-110/1500	1500	110～160	＜210V	6	92	1.25″
4DSP9/50-72/900	900	72～120	＜160V	9	30	2″
4DSP9/60-72/1100	1100	72～120	＜160V	9	40	2″
4DSP9/60-110/1100	1100	110～160	＜210V	9	40	2″
4DSP9/85-110/1500	1500	110～160	＜210V	9	60	2″
4DSP13/44-72/1100	1100	72～120	＜160V	13	30	2″
4DSP13/44-110/1100	1100	110～160	＜210V	13	30	2″
4DSP13/60-110/1500	1500	110～160	＜210V	13	45	2″

Product Overview

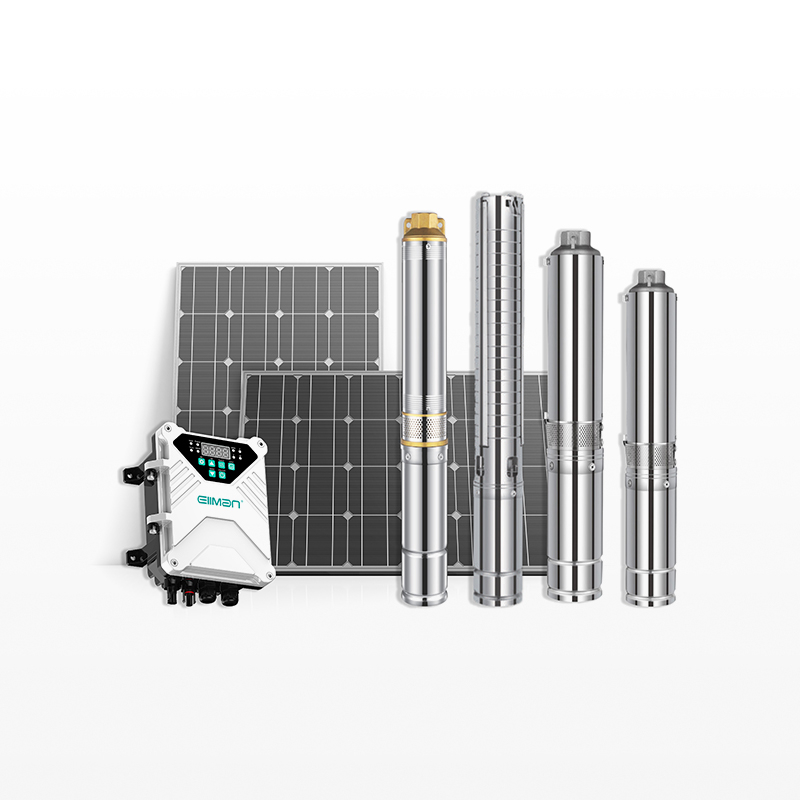

The 4DSP series is a DC-powered permanent magnet variable frequency pump engineered for clean water applications, with a focus on remote areas, renewable energy integration, and eco-friendly scenarios. Developed by Yimai Zhihui, it operates on DC voltage (72V–160V), making it compatible with solar panels, batteries, and off-grid power systems—ideal for locations where AC power is unstable or unavailable.

Key Product Features

DC Voltage Compatibility: Operates on 72V–160V DC, pairing seamlessly with solar panels (common 72V/110V solar setups) and batteries for off-grid use—no AC-to-DC converters needed.

Eco-Friendly Applications: Designed for ecological governance and agricultural irrigation, minimizing carbon footprint while delivering reliable performance.

Remote Area Suitability: Durable construction resists dust and mild moisture, making it suitable for grasslands, deserts, and rural areas with harsh environmental conditions.

Energy Efficiency: Saves 30%–50% energy vs. traditional DC pumps, extending battery life in off-grid systems and reducing solar panel capacity requirements.

Scenario-Based Solutions

Ecological Governance & Reservoir Management

Small Reservoir Water Circulation: The 4DSP pump circulates water in small reservoirs or ponds, preventing stagnation, improving oxygen levels, and supporting aquatic ecosystems.

Wetland Restoration: Transports clean water to restored wetlands, ensuring consistent moisture for native plants and wildlife.

Farmland & Orchard Irrigation

Drip & Sprinkler Irrigation: The 4DSP series (e.g., 4DSP13/60-110/1500 with 13 m³/h flow) supplies water to drip or sprinkler systems in orchards and vegetable farms, ensuring uniform irrigation and reducing water waste.

Solar-Powered Irrigation: Paired with solar panels, it operates independently of the grid, ideal for remote farms without AC power access.

Grassland & Desert Water Supply

Livestock Watering: Delivers water from wells or storage tanks to grassland livestock (e.g., sheep, cattle), ensuring access to clean water in arid regions.

Desert Greening Projects: Supplies water to desert afforestation areas, supporting the growth of drought-resistant plants and combating desertification.
